Hisense Cooker & Hob HE53011BW (739032) Spares

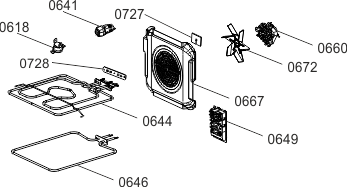

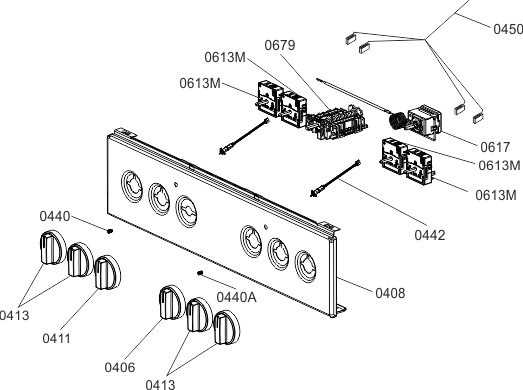

Exploded View Diagrams
7 diagrams01
Hisense Cooker & Hob HE53011BW (739032) Spares
Door Spacer
G235270·
To Order
£20.05inc. VAT
Clamp
G240770·
To Order
£20.05inc. VAT
Lamp 25W
G304858·
To Order
£16.80inc. VAT
Screw M5X40-H Iso7045 Rni
G419518·
To Order
£15.60inc. VAT
Door Cover Spacer
G425763·
To Order
£20.05inc. VAT
Console
G432038·
To Order
£15.60inc. VAT
Screw St4,8X13 Din7982 C H Black
G440277·
To Order
£17.45inc. VAT
Cut-Out Thermostat
G469257·
To Order
£21.75inc. VAT
Energy Switch-Single Circuit 50.8
G546324·
To Order
£39.00inc. VAT
Hot Plate Fixing Spring D 145Br Za Sev.G
G548215·
To Order
£20.05inc. VAT
Hot Plate Fixing Spring D180Br Za Sev.Gr
G548216·
To Order
£20.05inc. VAT
Side Wall Fs50 White
G554493·
To Order
£78.00inc. VAT
Side Bar Left Fs16 White
G554630·
To Order
£19.80inc. VAT
Side Bar Right Fs16 White
G554643·
To Order
£19.80inc. VAT
Cross Brace Fs50 Press
G554698·
To Order
£15.00inc. VAT
Flip Down Cover Fs50 Welded Bk070
G555052·
To Order
£42.75inc. VAT
Chimney Assembly Fs50
G559541·
To Order
£22.20inc. VAT
Bottom Heater Protective Shield Fs50
G562206·
To Order
£29.40inc. VAT
Central Cross Profile Oven Fs50
G563163·
To Order
£31.80inc. VAT
Back Wall Fs50 E
G564041·
To Order
£43.80inc. VAT
